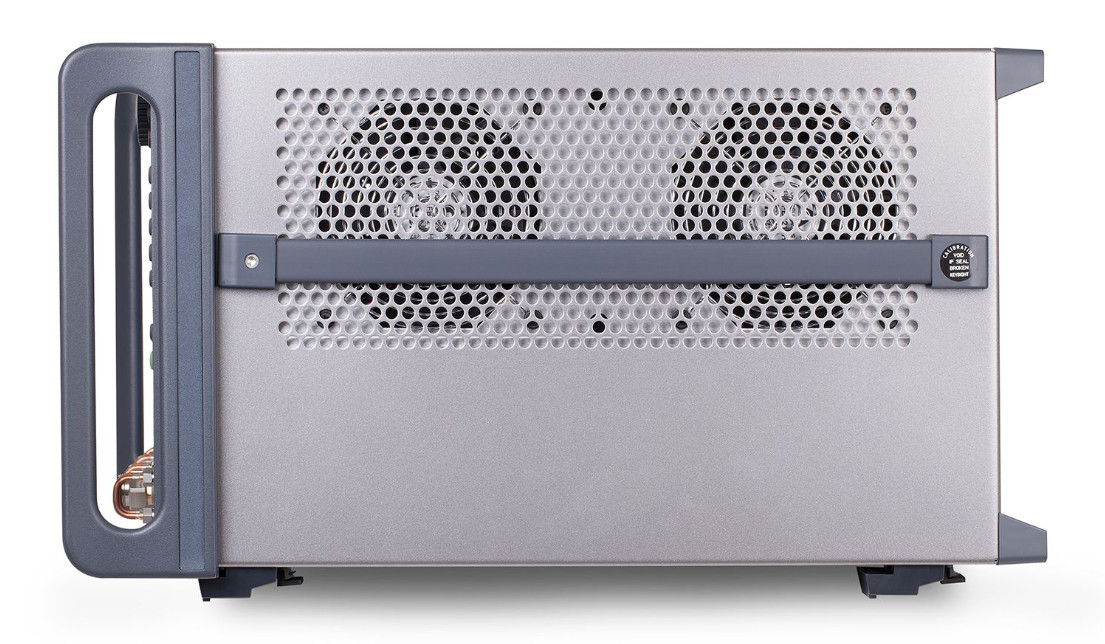

Keysight N5234B PNA-L Microwave Network Analyzer, 10 MHz to 43.5 GHz
Description of Keysight Agilent N5234B PNA-L Microwave Network Analyzer 43.5 GHz
The Keysight N5234B PNA Microwave Network Analyzer 10 MHz to 43.5 GHz is an integrated and flexible test engine that can measure active devices such as amplifiers, mixers, and frequency converters. This analyzer operates at a frequency range of 900 Hz to 43.5 GHz. The Keysight N5234B provides a combination of excellent hardware and powerful measurement applications to measure a broad range of devices quickly and accurately.
As part of the PNA series, the Keysight N5234B can apply to many of the measurement applications developed for the PNA-X series. These applications include gain compression, intermodulation distortion, source-phase control, and differential and I/Q devices. In each of these applications the user can expect low receiver noise floor, high receiver compression level, fast measurement speed (6 ms at 201 point, 1 sweep) and high stability.
Highlights of N5234B PNA-L Microwave Network Analyzer
- Perform basic analysis of passive components and simple active devices.
- Measure S-parameters with good accuracy up to 43.5 GHz in cost-sensitive applications.
- Get the world’s best price-to-performance ratio for microwave manufacturing.
- Configure an economical solution for signal-integrity measurements and materials characterization.
- Accelerate insight into component behavior using a multitouch display and intuitive user interface.
What's included:
- plug hole, bottom foot
- quick-start guide
- calibration certificate
- 3 inductors (ferrite core)
- wrench
- cable tie
- safety manual
- keyboard and USB cable
- optical mouse
Applications of N5243B :
- Real-time S-parameter and power measurement uncertainty
- Gain compression
- Intermodulation distortion
- Noise figure using standard receivers
- Source-phase control
- Differential and I/Q devices
- Frequency Converters
Features of N5243B:
- PNA Network analyzer software tools for investigating, characterizing & troubleshooting designs
- Advanced Design System (ADS): complete, integrated set of fast and accurate circuit & system simulators
- Configurable test set
- Up to 15 markers per trace
- 200 measurement channels and unlimited traces
- Context sensitive, built-in help
- Equation editor and time-domain analysis
List of Options for N5243B
Hardware options
| N5234B-200 | 2-port base hardware configuration |
| N5234B-216 | 2-port, configurable test set, source attenuators |
Software with Subscription
| S93007B | Automatic fixture removal |
| S93010B | Time-domain analysis |
| S93011B | Enhanced time domain analysis with TDR |
| S93015B | Real-time S-parameter and power measurement uncertainty |
| S93080B | Frequency-offset measurements |
| S93082B | Scalar mixer/converter measurements |
| S94601B | Device measurement eXpert - DMX |
| S94602B | Limit assistant |
| S930900B | Spectrum analysis up to 8.5 GHz |
| S930901B | Spectrum analysis up to 13.5 GHz |
| S93051B | IQ Data Bandwidth up to 4 GHz |
| S930902B | Spectrum analysis up to 26.5 GHz |
| S930904B | Spectrum analysis up to 43.5 GHz |
| S93551B | N-port measurements |
| S93898B | Built-in performance test software |
Accessories
| N5234B-1CM | Rack mount kit for installation without handles |
| N5234B-1CP | Rack mount kit for installation with handles |
| N5234B-SSD | Additional removable solid state drive |
| U8487A | Power Sensor; USB average thermocouple, 10MHz-50GHz |
