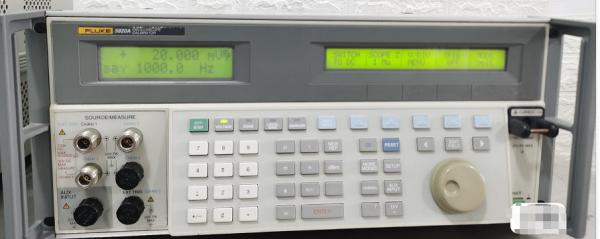

5800A Fluke Oscilloscope Multi Function Calibrator Automatic Meter Error Calculation

Name: 5800A Fluke Oscilloscope Multi Function Calibrator Automatic Meter Error Calculation
Brand: Fluke
Price: 1 USD

Quality 5800A Fluke Oscilloscope Multi Function Calibrator Automatic Meter Error Calculation for sale

Brand Name : Fluke

Model Number : 5800A

Certification : FCC

Place of Origin : USA

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : in stock

Packaging Details : carton

Product name : Multi Product Calibrator

Amplitude Signals : up to 600 MHz

Repair Support : Calibration only

Calibration Support : Contact us

Condition : Pre-Owned

Functions : Tested, in Full Working Conditions

Contact Now

Fluke 5800A Multi-Product Calibrator

Description of Fluke 5800A Multi Product Calibrator

Automatic meter error calculation
X and D keys that change the output value to pre-determined cardinal values for various functions
Programmable entry limits that prevent invalid amounts from being entered
Edge, Leveled Sine, Pulse, Marker, and Wave Generation modes
Accurate oscilloscopic input impedance measurement
Tunnel Diode Pulse compatibility
External reference
Auxiliary input
5-channel output (5-channel option). The 5-channel option allows you to calibrate up to five oscilloscope channels simultaneously without changing cables
Simultaneous output of a signal and a trigger signal
600 MHz, Leveled Sine wave output
Standard IEEE-488 (GPIB) interface, complying with ANSI/IEEE Standards 488.1-1987 and 488.2-1987
EIA Standard RS-232-C serial data interface for printing, displaying, or transferring internally stored calibration constants, and for remote control of the 5800A
Pass-through RS-232-C serial data interface for communicating with the Unit Under Test (UUT)
Extensive automatic internal self testing and diagnostics of analog and digital functions
EMC Complies with EN 61326-1
Line Power Line Voltage (selectable): 100 V, 120 V, 220 V, 240 V
Line Frequency: 47 to 63 Hz
Power Consumption 250 VA

The Fluke Model 5800A Oscilloscope Calibrator is a precise instrument that calibrates analog and digital oscilloscopes.

The 5800A Calibrator may be operated at the front panel in the local mode, or remotely using RS-232 or IEEE-488 ports. For remote operations, several software options are available to integrate 5800A operation into a wide variety of calibration requirements.

Fluke 5800A Performance Characteristics

Form Factor: Benchtop
DC Volts Minimum Range: 6 V
DC Volts Maximum Range: 130 V
DC Volts No. of Ranges: 2 QTY
DC Volts Basic 1 yr accuracy: 0.05 %
AC Volts Minimum Range: 6.6 V
AC Volts Maximum Range: 130 V
AC Volts No. of Ranges: 2 QTY
AC Volts Minimum Frequency: 50 kHz
AC Volts Maximum Frequency: 600 MHz
DC Current Minimum Range: 100 uA
DC Current Maximum Range: 100 mA
DC Current No. of Ranges: 1 QTY
DC Current Basic 1 yr accuracy: 0.05 %
AC Current Minimum Range: 100 uA
AC Current Maximum Range: 100 mA
AC Current Basic 1 Year Accuracy: 0.25 %
Resistance Minimum Range: 40 Ohm
Resistance Maximum Range: 1.5 MOhm
Resistance Basic 1 yr accuracy: 0.1 %
Minimum Frequency: 50 Hz
Maximum Frequency: 600 MHz

5800A Mainframe Specifications

Voltage DC

Range:	0 to ±6.6V (50Ω)
Range:	±0.25%
	------------
Range:	0 to ±130V (1 MΩ)
Best 1 Year Specification:	±0.025%

Voltage AC (Squarewave

Range:	: 0 to ±6.6V (50Ω)
Best 1 Year Specification:	±0.25%
	--------
Range	±1 mV to ±130V p-p (1 MΩ)
Best 1 Year Specification:	±0.05%

Fast Edge

Range:	4 mV to 2.5V p-p (50Ω)
Best 1 Year Specification:	300 ps Rise Time

Leveled Sinewave

Range:	50 kHz to 600 MHz
Best 1 Year Specification:	50 kHz to 600 MHz
	±1.5% Flatness

Time Markers

Range:	5s to 500 ps
	Spike, square, 20% pulse, sine
Best 1 Year Specification:	±1 ppm

Wave Generator

Range:	Range: 1.8 mV to 55V p-p (1 MΩ)
	1.8 mV to 2.5V p-p (50Ω)
	0.01 Hz to 100 kHz
	Square, Sine, Triangle
Best 1 Year Specification:	±3

Pulse Generator

Range:	15 mV to 1.5V amplitude
Best 1 Year Specification:	1 ns to 500 ns width ±5%
Best 1 Year Specification:	1 ns to 500 ns width ±5%

DC Voltage Measurement

Range:	0 to ±6.6V
Best 1 Year Specification:	: ±0.05%

Current DC

Range:	±100 mA to ±100 mA
Best 1 Year Specification:	± 0.25%

Current AC

Range:	100 mA p-p to 100 mA p-p
	10 Hz to 100 kHz
	Squarewave
Best 1 Year Specification:	±0.25%

TV Trigger

NTSC, SECAM, PAL, PAL-M

Input Impedance Measurement

Range:	40Ω to 1.5 MΩ
Best 1 Year Specification:	±0.1%
	--------
Range:	5 pF to 50 pF
Best 1 Year Specification:	±5%

Overload Measurement

5V to 9V (dc or ac squarewave), 5 to 60 seconds

List of Options

05	5 CHANNEL OUTPUT

5800A Fluke Oscilloscope Multi Function Calibrator Automatic Meter Error Calculation

FAQ:

1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
