Brand Name : Keysight (Agilent)
Model Number : E4980A
Place of Origin : Malaysia
MOQ : 1 set
Price : Negotiation
Payment Terms : T/T
Supply Ability : in stock
Product name : Precision LCR Meter
Frequency : 20 Hz to 2 MHz
Basic Accuracy : 0.05%
High-speed measurements : 5.6 ms
Condition : Pre-Owned
Functions : Tested, in Full Working Conditions
Keysight Agilent E4980A Precision LCR Meter 20 Hz To 2 MHz 0.05% Basic Accuracy
Description of Keysight Agilent E4980A
The E4980A precision LCR meter provides the best combination of accuracy, speed, and versatility for a wide range of component measurements. Offering fast measurement speed and outstanding performance at both low and high impedance ranges, the E4980A is the ultimate tool for general R&D and manufacturing test of components and materials. LAN, USB and GPIB PC connectivity enhances your design and test productivity.For materials measurements, the E4980A with the N1500A-005/006 materials measurement suite simplifes the measurement process from fixture setup to report generation.
Overview and Features of E4980A Precision LCR Meter
| 001 | Power and DC Bias enhance (20V, 100mA, 40V DC Bias, 2nd DC source) |
| 002 | Bias current interface |
| 005 | Entry model |
| 007 | Upgrade to standard model |
| 16034E | Test Fixture (SMD Components) |
| 16034G | SMD Test Fixture |
| 16034H | SMD Array Type LCR Test Fixture |
| 16044A | SMD LCR Kelvin Contact Test Fixture |
| 16047A | Test Fixture (Axial and Radial) |
| 16047D | Test Fixture |
| 16047E | Test Fixture, 40 Hz to 110 MHz |
| 16048A | Test Lead, BNC Connector to BNC Connector Board |
| 16048D | 2m BNC Test Cable |
| 16048E | Test Leads |
| 16065A | 200 Vdc External Voltage Bias Fixture |
| 16085B | Terminal Adapter |
| 16089A | Large Kelvin Clip Lead |
| 16089B | Medium Kelvin Clip Lead |
| 16089C | Kelvin IC Clip Lead |
| 16089D | Alligator Clip Lead (4 Clips) |
| 16089E | Kelvin Clip Leads |
| 16092A | Spring Clip Fixture |
| 16192A | Parallel Electrode SMD Test Fixture |
| 16194A | High Temperature Component Test Fixture |
| 16196A | Parallel Electrode SMD Test Fixture, DC to 3 GHz |
| 16196B | Parallel Electrode SMD Test Fixture, DC to 3 GHz |
| 16196C | Parallel Electrode SMD Test Fixture, DC to 3 GHz |
| 16196D | Parallel Electrode SMD Test Fixture, DC to 3 GHz |
| 16197A | Bottom Electrode SMD Test Fixture |
| 16200B | External DC Bias Adapter |
| 16334A | Test Fixture (Tweezers Contacts) |
| 16380A | Standard Air Capacitor Set (1pF to 1000pF) |
| 16380C | Capacitance Standard Set - 0.01uF to 10uF |
| 16451B | Dielectric Test Fixture |
| 16452A | Liquid Test Fixture |
| 1A7 | ISO 17025 compliant calibration |
| 1CM | Rack mount kit |
| 200 | DCR measurement |
| 201 | handler interface |
| 201 | Handler interface |
| 301 | Scanner interface |
| 301 | scanner interface |
| 42030A | Four Terminal Pair Standard Resistor Set |
| 42090A | Open Termination (4-Terminal Pair) |
| 42091A | Short Termination (4-Terminal Pair) |
| 710 | No Interface |
| 82357B | USB/GPIB Interface High-Speed USB 2.0 |
| A6J | ANSI Z540 compliant calibration |
| ABA | U.S. Quick Users Guide (English localization) |
| ABJ | Japan Quick Users Guide (Japanese localization) |
| E5810A | LAN/GPIB Gateway |
| R-50C-011-3 | Agilent Calibration - 3 years |
| R-50C-011-5 | Agilent Calibration - 5 years |
| R-50C-016-3 | ISO 17025 Compliant Calibration - 3 years |
| R-50C-016-5 | ISO 17025 Compliant Calibration - 5 years |
| R-50C-021-3 | ANSI Z540-1-1994 Calibration - 3 years |
| R-50C-021-5 | ANSI Z540-1-1994 Calibration - 5 years |
| R-51B-001-3C | Return to Agilent Warranty - 3 years |
| R-51B-001-5C | Return to Agilent Warranty - 5 years |
| R-51B-001-C | Return to Agilent Warranty - 1 year |
| RMKT | Agilent Refurbished Product (Do Not Use - Certiprime Option) |
 FAQ:
1.Can you ship order to Canada or Australia ?
 Yes,we can .We send orders worldwide .
 2. What delivery method do you use ? and delivery time ?
 We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
 3. What is your payment term?
 100% T/T payment before shipment.
 4. How can I ask any other question ?
 You can contact us online or leave us messages below .




|   |

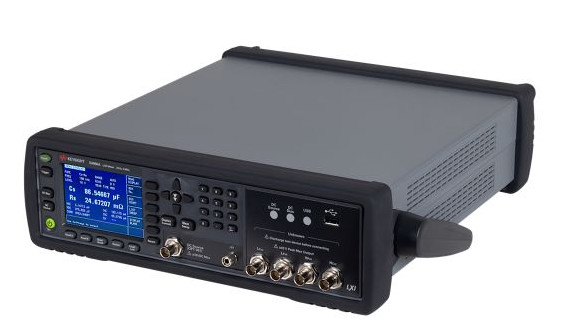

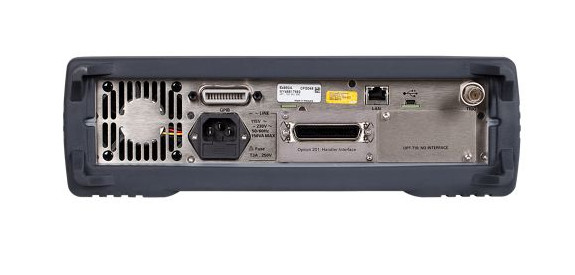

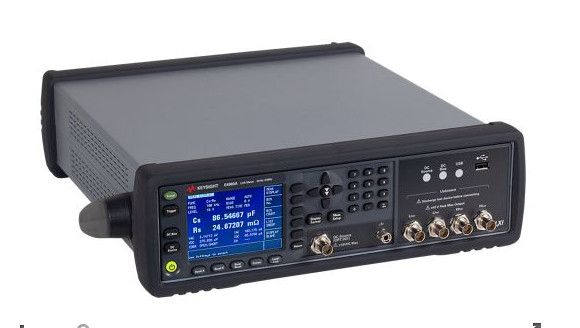

| Keysight Agilent E4980A Electronic Test And Measurement Equipment Precision LCR Meter Images |
